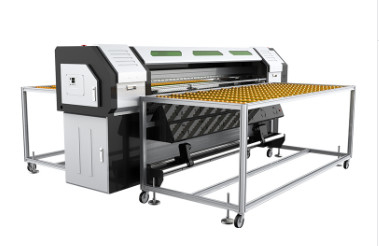

Roll To Roll UV Hybrid Printer , DX5 Head UV Flatbed Printing Machine

Name: Roll To Roll UV Hybrid Printer , DX5 Head UV Flatbed Printing Machine
Brand: Roll To Roll UV Hybrid Printer , DX5 Head UV Flatbed Printing Machine
SKU: Roll To Roll UV Hybrid Printer , DX5 Head UV Flatbed Printing Machine
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (178 reviews)
ISBN: 12463403

Large Image : Roll To Roll UV Hybrid Printer , DX5 Head UV Flatbed Printing Machine

Product Details:

Place of Origin:	Guangdong, China
Certification:	CE, SGS, ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	Quantity(Set)1: 7 days;>1,To be negotiate
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Color & Page:	Multicolor	Function:	Roll To Roll And UV Flatbed Printing
Automatic Grade:	Automatic	Voltage:	AC220V,50Hz/60Hz
Dimensions:	3160x1130x1130mm(LxWxH)	Weight:	900KG ±15kg
Warranty:	1 Year	Print Dimension:	1800mm
Ink Type:	Eco Solvent Ink Or UV Ink	Type:	Flatbed Printer
High Light:	hybrid flatbed printers , flatbed digital printing machine

Roll To Roll UV Hybrid Printer , DX5 Head UV Flatbed Printing Machine

Technical Parameters

R180 roll to roll and flatbed printer is a new printing machine which combined flatbed printer with inkjet printer in one machine, along with all features and advantages of flatbed printer and inkjet printer. continuing consistent style of superior material, exquisite workmanship and stable production.

Model	R180
printhead	Piezo Electric Printhead Dx5
Number of Printhead	1 Head/ 2 heads
Max Print Width	1800mm(74”)
Printing Resolution	4Pass	30 m²/hr
	6Pass	20 m2/hr
	8Pass	15 m2/hr
	16Pass	7 m2/hr
Ink	Type	Eco solvent ink, UV ink
	Color	4/6/8 color
	Capacity	0.25L
	Ink Supply System	Block brake type of ink supply system
Media	Width	1800mm(74”)
	Type	PVC, PP, Soft materials, Textiles, PVC Board, Hollow board, Metal, Wall paper, Leather, Glass, Fabric, Acrylic, KT board, Chevron board etc
Print Height	10-30 mm above media adjustable
Heating System	pre-heating platen-heating post-heating
Media adsorption system	Several phase of intelligent air draft, and intensity adjustable
Media adsorption	Independent intelligent air suction system with 3 sections control
Auto Printhead Cleaning System	Auto cleaning system with Anti-clogged Flash Function & Moisturing System
Clamp	Equipped
Auto take up system	Selectable
Print Interface	HI-USB2.0/ 3.0
RIP software	Maintop,Photoprint,Wasatch
Input Power	AC220V,50Hz/60Hz
Working environment	Temperature 18-31℃ Humidity: 46-65%Rh
Machine Dimension	3160x1130x1130mm(LxWxH) 900KG ±15kg
Packing Dimension	3300x1045x1500mm (LxWxH) 1150KG ±15kg

Application Areas:

Decoration industry, glass industry, sign industry, exhibition industry, rigid paperboard packing industry, leather, textile printing industry, artware industry, furniture industry etc.

Advantages:

1. Our machine can print material includes rigid sheets, such as glass, metal, acrylic, PVC board, MDF, and the flexible material, like film, leather, canvas, wall paper, ceiling paper etc.

2. We can provide the printer with excellent performance & competitive price.

3. You will enjoy our one-stop service.
