Product Details:
Payment & Shipping Terms:
|
| Gross Power: | 380W | Color & Page: | MULTICOLOR |
|---|---|---|---|
| Usage: | Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Glass,wood,card,acrylic | Plate Type: | Flatbed Printer |
| Condition: | New | Dimensions(L*W*H): | 1525* 1035 *800 Mm |
| Weight: | 128KG | Automatic Grade: | Automatic |
| Voltage: | 110V/220V | Warranty: | 2 Years |
| High Light: | uv flatbed printing machine,flatbed digital printing machine |
||

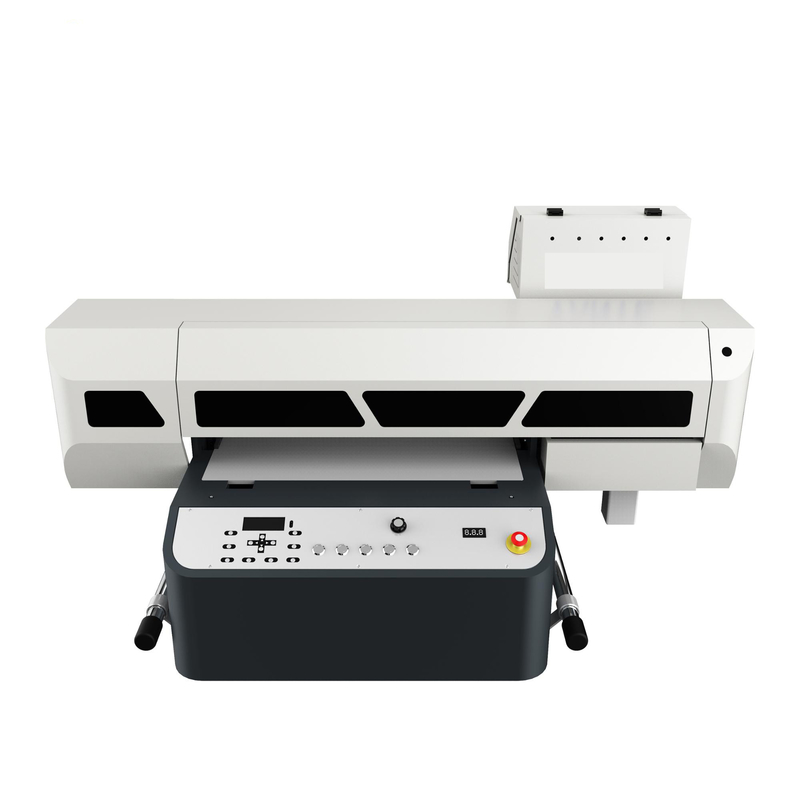

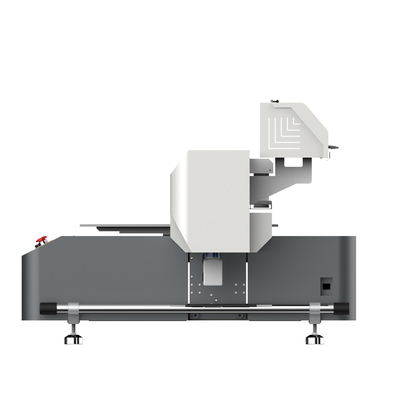

GH2220 Printhead UV Flatbed Printer , Reliable A2 UV LED Digital Printer
Product Description
| SPECIFICATIONS FOR UV6090 flatbed printer | |||
|
Print Resolution |
Speed model | 720*720dpi | >=8m2/per hour |
| Standard model | 720*1440dpi | >=6m2/per hour | |
| High quality model | 2880*2880dpi | >=4m2/per hour | |
|
Main performance parameters |
With Japan Ricoh Gh2220 | ||
| UV Curing System with LED UV lamp (Water Cooling) | |||
| Smart Bi-directional Printing Mode Drop-on-demand Piezo Electric Inkjet | |||
| Name | Digital UV Flatbed Printer 4060 | ||
| Machine Type | Automatic Flatbed UV digital printer | ||
| Features | · The UV light source can be adjusted · Auto height measurement . Power clean · It can print on any material directly · Ideal for industrial bulk production with high printing speed · Finished products is Water proof, UV proof, and Scratch proof · Finished product is suitable for outdoor use · Max printing Size: 60*40cm · With Carry handle · The printing machine can print white color |
||
| Materials to Print | · Metal, Plastic, glass, wood, Ceramics,PVC,Steel board,Paper, · Acrylic, Leather, etc |
||
| UV Curing System | LED UV lamp (Water Cooling) | ||
| Printing Method | Drop-on-demand Piezo Electric Inkjet | ||
| Printing Direction | Smart Bi-directional Printing Mode | ||
| Printing Speed | About 120seconds for 720*720dpi, 400mm*600mm size | ||
| Max. Print Gap | 14cm | ||
| Power Requirement | 50/60HZ 220V(±10%)<5A | ||
| Print Quality | True Photographic Quality | ||
| Environment | 20 ~ 28 ℃ HR40-60% | ||
| Printer Head | 2/3/4 pcs Printer Heads(optional) | ||
| RIP Software | SAi PhotoPrint DX or DX Plus | ||
| Operation System | Windows Win7/Win8/Win10 | ||
| Interface | USB2.0/3.0 Port | ||
| Languages | English,Other language available | ||
| Ink Type | UV LED curing ink | ||
| Ink System | CISS Built Inside With Ink Bottle | ||
| Ink Supply | 250ml/Bottle | ||
| Height Adjustment | Automatic with Sensor. | ||
| Driving Power | 110 V/ 220 V. | ||
| Power Consumption | 750W | ||
| Media Feeding System | Manual | ||
| Ink Consumption | 15-30ml/SQM. | ||
| Working Environment | 20-28 degrees. | ||
| Packing | Wooden Case | ||
| Machine Net Weight | 148Kg | ||
| Machine Dimension | 113* 162 *80cm | ||
| Packing | Wooden Case | ||
| Case Size | 120*175*120CM | ||
| Gross.Weight | 250KG | ||
Details
Print Dimension: 40*60CM
Ink Type: UV inkjet LED curing ink
Type: Digital Printer
Product name: UV4060 printer
Print size: 600*400mm
Printhead: Gh2220 Printheads
Ink type: UV LED Ink
UV Curing System: LED UV lamp (Water Cooling)
Print speed: A4 Photo*35S
Application: digital uv led flatbed printer phonecase printing machine
Printing type: UV inkjet printing
Application Areas:
Decoration industry, glass industry, sign industry, exhibition industry, rigid paperboard packing industry, leather, textile printing industry, artware industry, furniture industry etc.
Advantages:
1. Our machine can print material includes rigid sheets, such as glass, metal, acrylic, PVC board, MDF, and the flexible material, like film, leather, canvas, wall paper, ceiling paper etc.
2. We can provide the printer with excellent performance & competitive price.
3. You will enjoy our one-stop service.
Machine Parts
Name: Mechanical transmission
Brand: Hi-Win
Original: Taiwan
Domestic famous engines, strong driving force, low consumption, with mute slider and stainless steel slideway
Name: Chain/Towline
Brand: Igus
Original: Germany
Easy and versatile installation combined with ruggedness - high stability combined with low-noise operation, long service life for cables and manifold mounting options
Name: Servo motor
Name: Tempering Steel frame
Whole stainless steel frame to make the machine more stable and wearable
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
