Product Details:
Payment & Shipping Terms:
|
| Color & Page: | Multicolor | Usage: | Advertising Production |
|---|---|---|---|
| Plate Type: | Flatbed Printer | Condition: | New |
| Weight: | 1350KG | Automatic Grade: | Automatic |
| Voltage: | 220V/230V, 50Hz/60Hz | Warranty: | 1 Years |
| Applicable Industries: | Printing Shops, Advertising Company | ||
| Highlight: | flatbed digital printing machine,digital flatbed led uv printer |
||

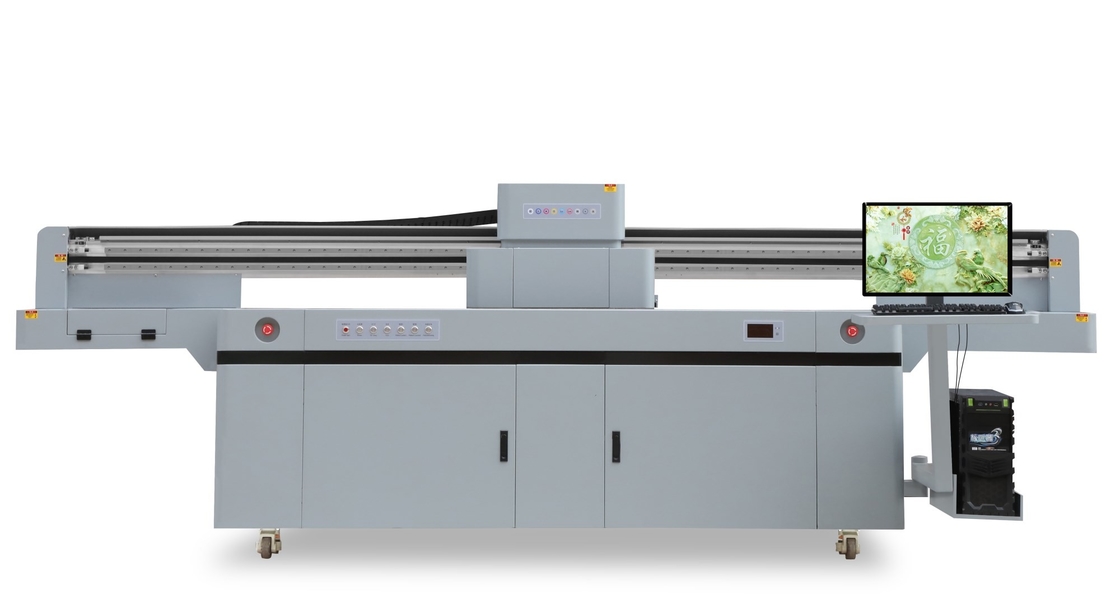

1440dpi UV Flatbed Printer With Industrial Grade Rocoh Gen5 Printhead
Quick Details:
Print Dimension: 2500mm x 1300mm
Ink Type: UV Ink
Product name: UV Flatbed Printer PJ-2513
Printing Dimension: 2500mm x 1300mm
Printhead Height: Adjustable 0-80mm
Print Speed: 42 sqm/h(With 3 Print Heads)
Ink Color: C M Y K Lc Lm W Vanish
RIP Software: Photoprint
Resolution: 1440dpi
Curving Mode: LED-UV Light/Power Consumption 400W, Fast Dry
Image Format: JPG, TIF, PDF, PNG, EPS and etc
Product Specification:
| Model NO. | FB-2513R | FB-2030R |
| Printhead | Gen5/7PL(3/4 heads) | |
| Printhead Height | Adjustable 0-80mm | |
| Media Width | 2500 x 1300 mm | |
| Resolution(dpi) | 300x360dpi 360x720dpi 720x720dpi 720x1080dpi 720x1440dpi 1080x1440dpi | |
| Ink Color | C M Y K Lc Lm W Vanish(8 Color) | |
| Speed (3 pass) | 42 sqm/h(With 3 Print Heads) | |
| Speed (4 pass) | 32 sqm/h(With 3 Print Heads) | |
| Speed (6 pass) | 26 sqm/h(With 3 Print Heads) | |
| Ink Type | UV/ECO Ink | |
| Image Format | JPG, TIF, PDF, PNG, EPS and etc | |
| RIP Software | Main top/Photo PRINT/Wasstch Intertional Standard ICC Configuration | |
| Curving Mode | LED-UV Light/Power Consumption 400W, Fast Dry | |
| Environment | Temperature: 20-28°C, Humidity: 40-60% | |
| Interface | USB2.0 | |
| Power Input | AC 220V, 50/60Hz | |
| Power Consumption | Printing Mode ≈ 3500W, Sleep Mode ≈ 600W | |
| Machine Size | L4200 W2100 H1400 (mm) | L3500 W3900 H1400 (mm) |
| Machine Weight | 900 KG | 1350 KG |
After-sales Service Provided:
Online support, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
About Us:
Guangzhou Allcolor Co.,Ltd is specialized in digital printer and digital printing ink for large format printers. In these areas, we offer our customer full range of premium quality eco-solvent ink, solvent ink, textile sublimation ink, and UV ink.
Our inks are formulated based on the specification of EPSON DX5, DX7, Konica Minolta, Seiko SPT, Starfire, Xaar, and Spectra Polaris printheads to achieve the best printing performance.
