Product Details:
Payment & Shipping Terms:
|
| Gross Power: | 380W | Color & Page: | MULTICOLOR |
|---|---|---|---|
| Usage: | Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Glass,wood,card,acrylic | Plate Type: | Flatbed Printer |
| Condition: | New | Dimensions(L*W*H): | 1525* 1035 *800 Mm |
| Weight: | 128KG | Automatic Grade: | Automatic |
| Voltage: | 110V/220V | Warranty: | 2 Years |
| Highlight: | uv flatbed printing machine,digital flatbed led uv printer |
||

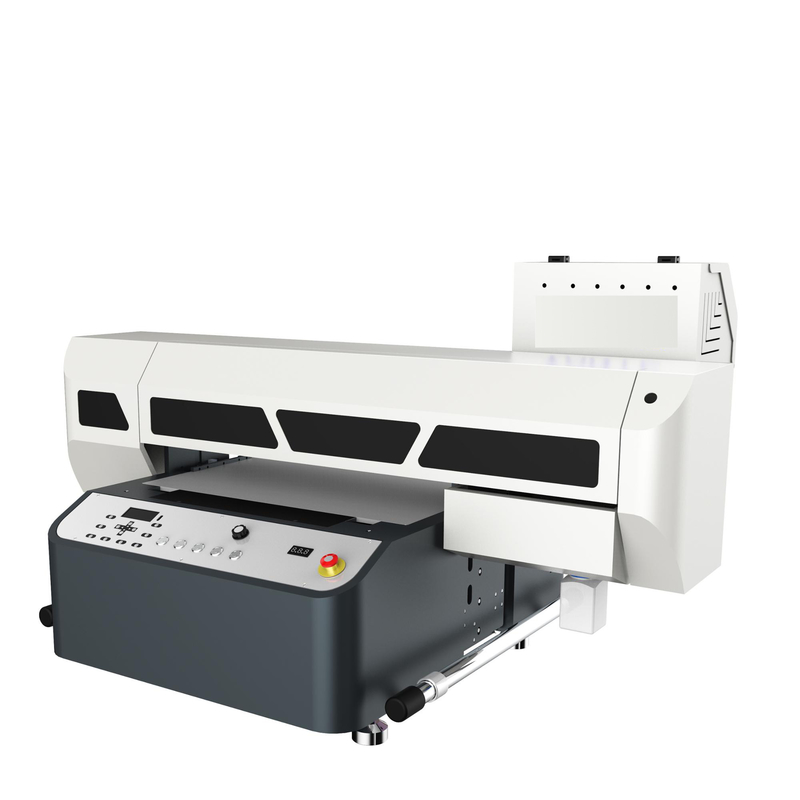

A2 Digital Flatbed LED UV Printer , Small Business Cylinder Printing Machine
Quick Details
Print Dimension: 40*60CM
Ink Type: UV inkjet LED curing ink
Type: Digital Printer
Product name: UV4060 printer
Print size: 600*400mm
Printhead: Gh2220 Printheads
Ink type: UV LED Ink
UV Curing System: LED UV lamp (Water Cooling)
Print speed: A4 Photo*35S
Application: digital uv led flatbed printer phonecase printing machine
Printing type: UV inkjet printing
Product Description
| SPECIFICATIONS FOR UV6090 flatbed printer | |||
|
Print Resolution |
Speed model | 720*720dpi | >=8m2/per hour |
| Standard model | 720*1440dpi | >=6m2/per hour | |
| High quality model | 2880*2880dpi | >=4m2/per hour | |
|
Main performance parameters |
With Japan Ricoh Gh2220 | ||
| UV Curing System with LED UV lamp (Water Cooling) | |||
| Smart Bi-directional Printing Mode Drop-on-demand Piezo Electric Inkjet | |||
| Name | Digital UV Flatbed Printer 4060 | ||
| Machine Type | Automatic Flatbed UV digital printer | ||
| Features | · The UV light source can be adjusted · Auto height measurement . Power clean · It can print on any material directly · Ideal for industrial bulk production with high printing speed · Finished products is Water proof, UV proof, and Scratch proof · Finished product is suitable for outdoor use · Max printing Size: 60*40cm · With Carry handle · The printing machine can print white color |
||
| Materials to Print | · Metal, Plastic, glass, wood, Ceramics,PVC,Steel board,Paper, · Acrylic, Leather, etc |
||
| UV Curing System | LED UV lamp (Water Cooling) | ||
| Printing Method | Drop-on-demand Piezo Electric Inkjet | ||
| Printing Direction | Smart Bi-directional Printing Mode | ||
| Printing Speed | About 120seconds for 720*720dpi, 400mm*600mm size | ||
| Max. Print Gap | 14cm | ||
| Power Requirement | 50/60HZ 220V(±10%)<5A | ||
| Print Quality | True Photographic Quality | ||
| Environment | 20 ~ 28 ℃ HR40-60% | ||
| Printer Head | 2/3/4 pcs Printer Heads(optional) | ||
| RIP Software | SAi PhotoPrint DX or DX Plus | ||
| Operation System | Windows Win7/Win8/Win10 | ||
| Interface | USB2.0/3.0 Port | ||
| Languages | English,Other language available | ||
| Ink Type | UV LED curing ink | ||
| Ink System | CISS Built Inside With Ink Bottle | ||
| Ink Supply | 250ml/Bottle | ||
| Height Adjustment | Automatic with Sensor. | ||
| Driving Power | 110 V/ 220 V. | ||
| Power Consumption | 750W | ||
| Media Feeding System | Manual | ||
| Ink Consumption | 15-30ml/SQM. | ||
| Working Environment | 20-28 degrees. | ||
| Packing | Wooden Case | ||
| Machine Net Weight | 148Kg | ||
| Machine Dimension | 113* 162 *80cm | ||
| Packing | Wooden Case | ||
| Case Size | 120*175*120CM | ||
| Gross.Weight | 250KG | ||
Machine Parts
Name: Mechanical transmission
Brand: Hi-Win
Original: Taiwan
Domestic famous engines, strong driving force, low consumption, with mute slider and stainless steel slideway
Name: Chain/Towline
Brand: Igus
Original: Germany
Easy and versatile installation combined with ruggedness - high stability combined with low-noise operation, long service life for cables and manifold mounting options
Name: Servo motor
Name: Tempering Steel frame
Whole stainless steel frame to make the machine more stable and wearable
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
