Product Details:
Payment & Shipping Terms:
|
| Type: | Eco Solvent Inkjet Printer | Usage: | For Vinyl/banner/wallpaper/sticker/canvas/leather Printing |
|---|---|---|---|
| RIP Software: | Ultra/Maintop/Photoprint | Data Communica: | High Speed USB2.0(480m/s) |
| Computer Program: | Windons 7/windons 8 | Image Data Form: | BMP, TIFF, EPS,PDF, AI, JPEG |
| Ink Type:: | Eco Solvent Ink | After-sales Service Provided:: | E Provided: Engineers Available To Service M |
| High Light: | epson eco ink printer,epson large format printer |
||

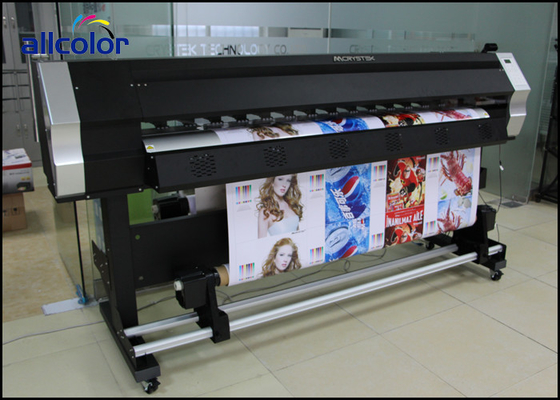

1.6m / 1.8m eco solvent printer with DX5 / DX7 / DX10 / XP600 print head, eco solvent printer
Features
1) This eco solvent printer equipped with one or two DX5 head, 1440dpi High resolution.
2) Can print both roll to roll printing media and work with flatbed, print directly on PS and KT board
3) Using Eco solvent ink or water based ink, suitable for both indoor and outdoor printing, Small odor good for enviroment.
4) Good printing soft ware machine. One year online tech support
Specification
| Number of head | 1PC | 1/2PC | 2PC |
| Print head | DX5/DX7/DX10/XP600 print head | ||
| Print Width | 1.6m | 1.9m | 3.2m |
|
Print Speed (sqm/h) |
4pass: 20sqm/h 6pass: 16sqm/h 8pass: 12sqm/h |
4pass: 40sqm/h 6pass: 32sqm/h 8pass: 24sqm/h
|
4pass: 48sqm/h 6pass: 40sqm/h 8pass: 32sqm/h |
| Ink Type | Eco Solvent Ink | ||
| Ink Supply System |
Positive ink supply system with cleaning function Ink tank capacity: 1500ml/color |
||
| Color | CMYK or CMYK,LC,LM | ||
| Media Width | 1.6m | 1.9m | 3.2m |
| Media Thickness | 1.5mm (1.5mm-5mm adjustable) | ||
| Media Roll Diameter(I/D) | 55mm or 76mm/ <200mm | ||
| Maximum Media Weight | 100KG | 100KG | 150KG |
| Media Type |
Vinyl, Flex Banner, Mesh, One Way Vision, Paper, Wallpaper, Leather, Coated Banner, Cavas, Film, Lint-free cloth, Photo Paper etc |
||
| Data Communication | High speed USB2.0(480m/s) | ||
| Image data format | BMP, TIFF, EPS,PDF, AI, JPEG | ||
| RIP Software | Ultra/Maintop/Photoprint | ||
| Operation environment |
Power supply: 220v(±10%), >10A,single phase (Temperature): 18°C-35°C (Humidity): 40%-70% |
||
| Power Consumption | 700W | 700W | 1500W |
|
Machine Size (L x W x H) |
2.51*0.85*1.23m/170KG | 3.01*0.85*1.23m/200KG | 4.54*1.01*1.36m/750KG |
|
Packing Size (L x W x H) |
2.57*0.74*0.70m/200KG | 3.07*0.74*0.70m/250KG | 4.73*1.04*1.48m/850KG |
| Certification | CE | ||
Application
Using Eco solvent ink, suitable for both indoor and outdoor printing because it's Small odor and good for enviroment.
It can print on Flex banner, vinyl sticker, one way vision PP, Wall paper, Poster paper, Photo paper, Transfer paper, Poster stands, Flag stands, Knife flag stands, X-banner stands and more...
