Product Details:
Payment & Shipping Terms:
|
| Gross Power: | 750W | Color & Page: | MULTICOLOR |
|---|---|---|---|
| Usage: | Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Glass,wood,card,acrylic | Plate Type: | Flatbed Printer |
| Condition: | New | Dimensions(L*W*H): | 360*241 *130cm |
| Weight: | 690KG | Automatic Grade: | Automatic |
| Voltage: | 110V/220V | Warranty: | 2 Years |
| High Light: | uv flatbed printing machine,flatbed digital printing machine |
||

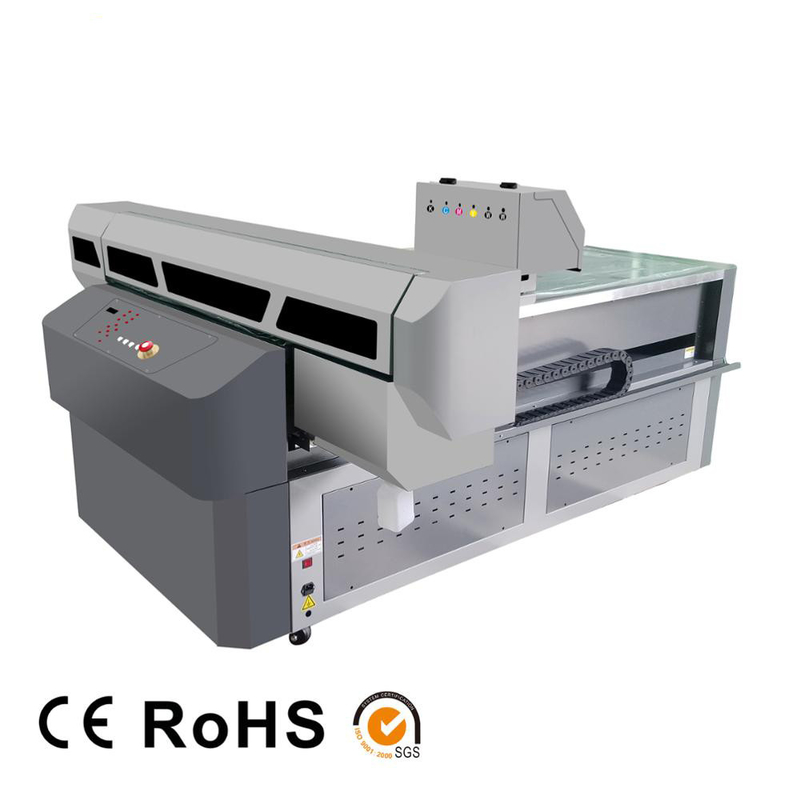

Digital UV Flatbed Printing Machine , High Intellectualization Industrial UV Printer
| Product Specification For UV1510 Flatbed Printer | |
| Name | Digital UV Flatbed Printer 1510 |
| Machine Type | Automatic Flatbed UV digital printer |
|
Features |
· Auto height measurement · With Vaccum Adsorption platform |
| Printer Head | Dual DX5/DX7/XP600/TX800 Printheads(optional) |
| Materials to Print | .Metal, Plastic, glass, wood, Ceramics,PVC,Steel board,Paper, · Acrylic, Leather, etc |
| Operation System | Microsoft Windows 98 / 2000/XP/Win7/Win8/Win 10 |
| UV Curing System | LED UV lamp (Water Cooling/Air Cooling Optional) |
| Printing Method | Drop-on-demand Piezo Electric Inkjet |
| Printing Direction | Smart Bi-directional Printing Mode |
| Printing Speed | About 6min. for 720*720dpi A3 size printing |
| Max. Print Format | 1500x1000mm |
| Max. Print Gap | 12.9cm |
| Ink Colors | CMYKCMYK+8W/ 2CMYK+8V(Varnish) (OPTIONAL) |
| RIP Software | SAi PhotoPrint DX |
| Ink System | CISS Built Inside With Ink Bottle |
| Ink Supply | 200 ml/Bottle |
|
Print Resolution |
Standard Dpi: 720*1440dpi Hi-def Dpi: 1440*1440dpi Low Dpi: 720*720dpi Max Dpi: 2880*2880dpi |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Details
Product name: Digital UV Flatbed Printer 1510
Printhead: Two Japan Dx5 printheads
Print size: 1500x1000mm
Application: Metal, Plastic, glass, wood, Ceramics,PVC,Paper,Acrylic, Leather, etc
Print speed: About 6min. for 720*720dpi A3 size printing
Operation System: Microsoft Windows 98 / 2000/XP/Win7/Win8/Win 10
Type: Automatic flatbed UV digital printer
Height Adjustment: Automatic with Sensor.
Ink Type: UV LED ink
Ink Colors: CMYKCMYK+8W/ 2CMYK+8V(Varnish) (OPTIONAL)
After-sales Service Provided: Engineers available to service machinery overseas
Product Application
UV Printer is a high-tech film-free full color digital printing machine: It is suitable to print on any materials,Such as T-shirts, sliding doors, cabinet doors, wooden doors, glass, plates, signs, crystal, PVC, acrylic , Metal, plastic, stone, leather and other surface color photo-level printing. No need to plate once the printing is completed, rich and colorful colors, abrasion resistance, UV protection, easy operation, printing images fast, in full compliance with industrial printing standard.
Advantages:
1. Our machine can print material includes rigid sheets, such as glass, metal, acrylic, PVC board, MDF, and the flexible material, like film, leather, canvas, wall paper, ceiling paper etc.
2. We can provide the printer with excellent performance & competitive price.
3. You will enjoy our one-stop service.
Finished Products:
Our machine can print any material
