Product Details:
Payment & Shipping Terms:
|
| Type: | Inkjet Printer | Color & Page: | Multicolor |
|---|---|---|---|
| Usage: | Card Printer, Label Printer, Paper Printer, Tube Printer, Cloths Printer, Phone Case,pen,USB,glass,ceramic | Plate Type: | Flatbed Printer |
| Condition: | New | Dimensions(L*W*H): | 3900*4000*1500mm |
| Weight: | 1980KG | Automatic Grade: | Semi-Automatic |
| Voltage: | 110V/220V | Warranty: | 3 Years |
| Print Dimension: | 2m*3m | Ink Type: | UV Led Ink |
| Highlight: | uv flatbed printing machine,flatbed digital printing machine |
||

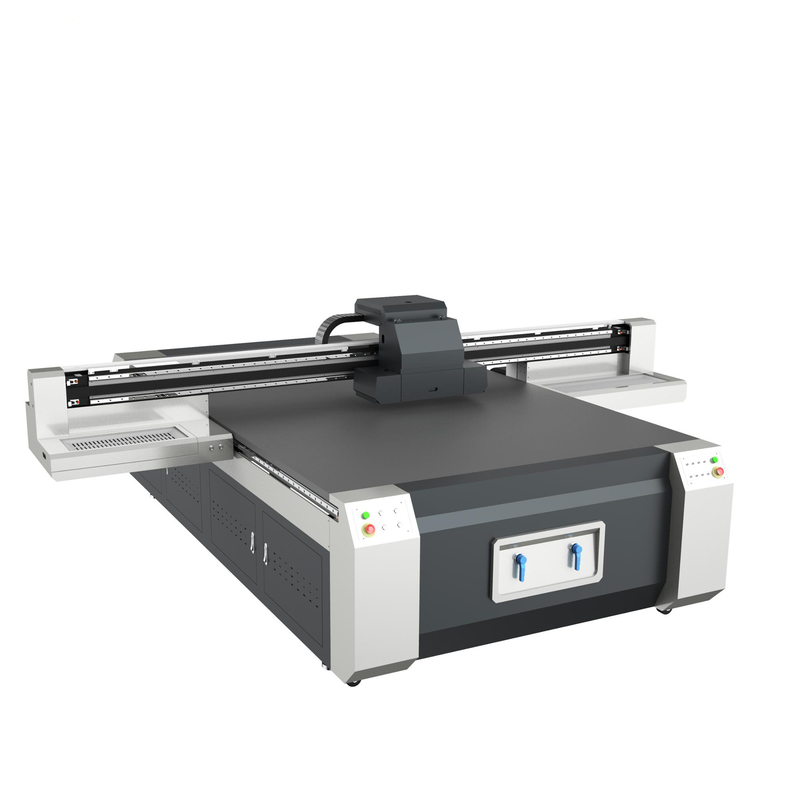

Semi Automatic Digital UV Flatbed Printing Machine For Building Material Industry
Quick Details:
Product name: UV Flatbed printing machine
Printhead: Ricohh G5 Printhead
Print size: 2000*3000mm
Application: Glass,wall paper,Phone case.Card.Hairpin .personalized Printing
UV Curing System: LED UV lamp (Water Cooling)
Printing type: UV inkjet printing
Service Life: 3-4 years
Colors Printing: CMYK+4W/CMYK+LCLM+W
Printhead No.: 2/3/4/5/6/8/16
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works , Advertising Company
Product Application
UV Printer is a high-tech film-free full color digital printing machine: It is suitable to print on any materials,Such as sliding doors, cabinet doors, wooden doors, glass, plates, signs, crystal, PVC, acrylic , Metal, plastic, stone, leather and other surface color photo-level printing. No need to plate once the printing is completed, rich and colorful colors, abrasion resistance, UV protection, easy operation, printing images fast, in full compliance with industrial printing standards.
| SPECIFICATIONS FOR UV2513 flatbed printer | |||
|
|
Speed model | 360*1440dpi | >=50m2/per hour |
| Standard model | 720*1440dpi | >=25m2/per hour | |
| High quality model | 1440*1440dpi | >=12m2/per hour | |
|
|
Gen 5 Print head of Japan Ricoh | ||
| UV Curing System with LED UV lamp (Water Cooling) | |||
| Smart Bi-directional Printing Mode Drop-on-demand Piezo Electric Inkjet | |||
| Features |
* Auto heightmeasurement * Positive pressure Auto cleaning system |
||
| CMYK / CMYK+LC+LM+WW / CMYK+W+V / CMYK+LC+LM+W+V | |||
| Height Adjustment | Automatic with height Sensor. | ||
| Printing Method | Drop-on-demand Piezo Electric Inkjet | ||
| UV Curing System | LED UV Light (Water Cooling system) | ||
| Printing Method | Drop-on-demand Piezo Electric Inkjet | ||
| Printing Direction | Smart Bi-directional unidirectional Printing Mode | ||
Quality Assurance
To ensure first-class quality, maintain a reputation of the business philosophy, adhere to the "customer first" principle to provide our clients with quality services.
