Product Details:
Payment & Shipping Terms:
|
| Type: | Inkjet Printer | Plate Type: | Roll To Roll Material |
|---|---|---|---|
| Condition: | New | Printing Resolution:: | 1440dpi |
| Warranty: | One Year Warranty | Ink Capacity:: | 1L Per Main Tank Of Each Color |

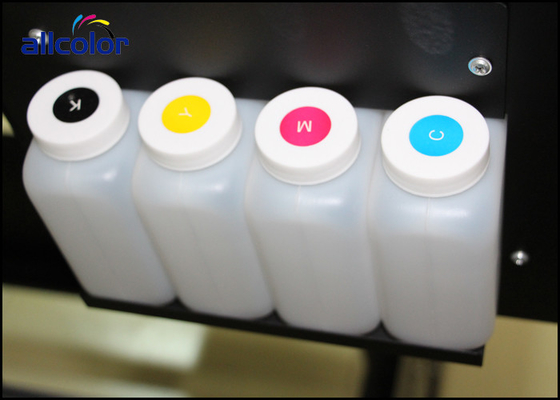

| Ink System: | Auto Supply System | Automatic Grad: | Automatic |
| High Light: | epson flex printing machine,epson large format printer |
||

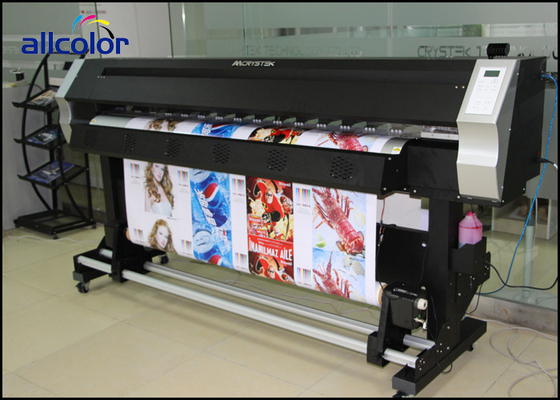

1.6m 1.8m 3.2m 1440dpi flex banner plotter large format eco solvent printer with dx5 print head
Features
1) This eco solvent printer equipped with one or two DX5 head, 1440dpi High resolution.
2) Can print both roll to roll printing media and work with flatbed, print directly on PS and KT board
3) Using Eco solvent ink or water based ink, suitable for both indoor and outdoor printing, Small odor good for enviroment.
4) Good printing soft ware machine. One year online tech support
Description
|
Model
|
ct-1600
|
ct-1800
|
ct-2100
|
UD-2600
|
UD-3200
|
||||
|
Printhead
|
DX5 print head
|
||||||||
|
No. of head
|
1pc
|
2pcs
|
1pc
|
2pcs
|
1pc
|
2pcs
|
2pcs
|
2pcs
|
|
|
Max print width
|
1600mm
|
1800mm
|
2100mm
|
2500mm
|
3200mm
|
||||
|
Print Speed
|
4pass
|
15
|
28
|
16
|
31
|
17
|
34
|
36
|
44
|
|
6pass
|
10
|
20
|
11
|
21
|
12
|
22
|
24
|
33
|
|
|
8pass
|
8
|
10
|
9
|
13
|
10
|
17
|
18
|
22
|
|
|
12pass
|
4
|
6
|
5
|
8
|
6
|
10
|
12
|
16
|
|
|
Media Type
|
Vinyl, polyester, flex, back-lit film, PS board, KT board, PVC foam board, etc
|
||||||||
|
Printing Ink
|
Water based ink / Eco solvent ink (4 color)
|
||||||||
|
Auto media feeding system
|
Equipped(Max.Media Weight 25kg
|
Equipped(Max.Media Weight 40kg
|
|||||||
|
Auto Cleaning System
|
Anti-clogged Flash Function & Capping System
|
||||||||
|
Pre-heating & Drying System
|
Equipped
|
||||||||
|
Print interface
|
USB2.0
|
||||||||
|
Printhead Height
|
2 to 10mm from media
|
||||||||
|
RIP software
|
Ultraprint,maintop,Wasatch
|
||||||||
|
Input power
|
AC220V,50Hz/60Hz
|
||||||||
|
Machine Dimension
|
L2820*W990*H1,
260mm/200KG
|
L3080*W990*
H1260 mm/204KG
|
L3380*W990*
H1260mm / 225KG
|
L3,780*W990*H1,
260mm / 242KG
|
L4480*W990*H1,
260mm/342KG
|
||||
|
Package Dimension
|
L2910*W1100*
H845mm/360KG
|
L3190*W1100
*H845 mm/381KG
|
L3490*W1100*
H845mm / 422KG
|
L3,890*W1,
100*H845mm / 443KG
|
L4590*W1100*
H845mm/543KG
|
||||
Application
Using Eco solvent ink, suitable for both indoor and outdoor printing because it's Small odor and good for enviroment.
It can print on Flex banner, vinyl sticker, one way vision PP, Wall paper, Poster paper, Photo paper, Transfer paper, Poster stands, Flag stands, Knife flag stands, X-banner stands and more...
