Product Details:
Payment & Shipping Terms:
|
| Color & Page: | Multicolor | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Automatic | Voltage: | 220V |
| Dimensions: | (L*W*H)3350*800*1500 | Weight: | 400KG(gross Weight) |
| Warranty: | 1 Year | Print Dimension: | 1.8m |
| Ink Type: | UV | Usage: | Leather/shoes/fabric Printing |
| High Light: | hybrid flatbed printers,roll to roll printing machine |
||

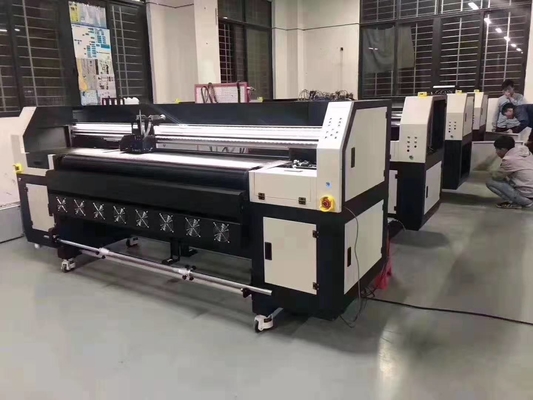

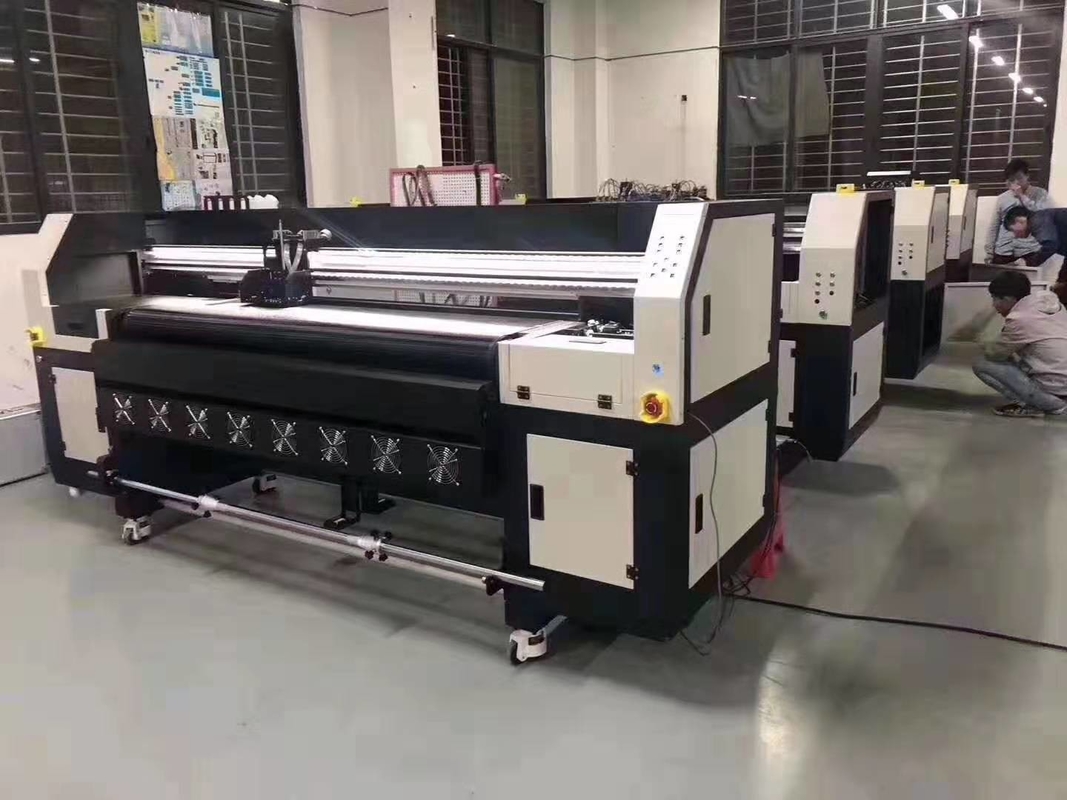

UV Hybrid Flatbed Printers For Leather / Carpet / Reflection Film Printing
Details:
name:
uv roll to roll printer
head:
Dx5/xp600/toshiba
ink color:
C,M,Y,K, or C,M,Y,K+white
print Width:
1.8m
printing solution:
2880dpi
ink type:
UV ink
gross weight:
400KG
net weight:
350KG
packing size:
(L*W*H)3350*800*1500
Product Description
1. one machine can be eco solvent UV flatbed printer or uv flatbed printer
2. one machine can be flatbed or roll to roll
3. comparing to other brand UV flatbed printer,our machine is very competitive
4. easy to install, you just know how to install head, we have professional engineer to guid you
on the line.
5. machine's stability, our all the machine will be tested before we delivery to our customer.
Our Service:
(1) Please contact with us in 5days after you receive the goods if you find any quality problems. Return or exchange is acceptable for the problems products.
(2) Please confirm that you have bought the right products when make purchasing. If you make mistakes when purchasing, then we will charge you 15% return poundage (Special products are non-refund or exchange).
(3) If the undeserved damage is caused due to personal reasons, we don't accept return or exchange. Any unreasonable return is not acceptable after receive the goods.
(4) Please give us “praise” after receive the goods, any problem contact us in the first time. We’ll try our best to help you. The “assessment” or “bad review” will not do any help for solvent the problem.
Quality Assurance
To ensure first-class quality, maintain a reputation of the business philosophy, adhere to the "customer first" principle to provide our clients with quality services.
Application
Technical Parameters
| Model | MarC-1808 | MarC-2508 | MarC-3208 |
| Print width | 1800mm | 2500mm | 3200mm |
| Printhead/Quantity: | dx5 | GEN5 | Polaris512 | Konica |
| 2-4 head | 2-8 head | 4-8 head | 4-8 head |
| Printhead height | 1.5mm-100mm1.5mm to 100mm optional |
| Printhead skill | Piezoelectric inkjet |
| Printhead control | The software automatic adjustment of the temperature and voltage |
| INK | Type | UV ink |
| Color | CMYK+W//Dual CMYK | |
| Color gamu | ICC or density curve | |
| Cartridge capacity | 2000ml | |
| Ink supply system | Automatic ink supply |
| Precision | GEN5 | 60dpi*900dpi 720dpi*600dpi 720dpi*900dpi 720dpi*1200dpi 720dpi*1500dpi 720dpi*1800dpi |
| DX5 | 1440dpi*1080dpi 360dpi* 1080dpi 720dpi*720dpi |
| Speed | GEN5 | In the light | Slow:32m2/h Medium:64m2/h Fast:76m2/h |
| Outside the light | Slow:64m2/h Medium:112m2/hFast:144m2/h | ||
| DX5 | 4pass: 30m2/h 6pass:18m2/h 8pass:12m2/h | ||
| Print media | Glossy banner, UV light sheet, soft membrane smallpox, wallpaper, leather, plastic flooring, PVC board, insulating board, metal, glass, ceramictile, acrylic, KT board, foam board etc.all kinds of roll to roll material and board material. |
| Platform adsorption | 1500W Turbo fan |
| Drying system | UV Light |
| Closed system | Photoelectric sensor |
| RIP Software | Ultraprint Maintop 5.3 Photoprint Print Factory |
| Operating system | Windows XP/Windows 7 |
| Power supply | 50/60Hz,220V(30%)>30A |
| File format | IFF JPEG , The best file format is TIFF |
| Environment | humidity:40%-60%;temperature: 20-28°C |
Details
Packaging & Delivery
Packaging Details
wooden case ,very strong,uv hybrid printer
Port
guangzhou
Lead Time :
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 7 | To be negotiated |
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
