Product Details:
Payment & Shipping Terms:
|
| Laser Type: | Fiber Laser | Cutting Area: | 3000*1500mm |
|---|---|---|---|
| Cutting Speed: | 30m/min | CNC Or Not: | Yes |
| Key Selling Points: | Multifunctional | Positioning Accuracy: | ±0.03mm |
| Keyword: | Heavy Industry Fiber Laser Cutting Machine | Power Supply Rated Voltage: | 3-phase 380V/50Hz Or Custom Made |
| High Light: | industrial laser cutter,laser cutting equipment |
||

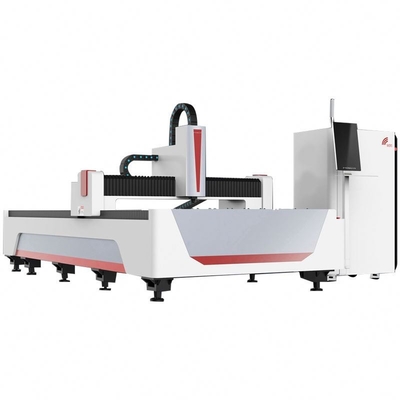

Heavy Industry Body Fiber Laser Cutting Machine With Easy Operation
Description
The fiber laser cutting machine is designed by European designers, this machine more in line with modern aesthetics. This machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.
Application Material
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Application Industries
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Specification
|
Working Area |
3000*1500mm |
|
X axis working area |
3,000mm |
|
Y axis working area |
1,500mm |
|
Laser Power |
500W/750W/1000W/1500W for option |
|
Positioning accuracy |
±0.03mm |
|
Repeatability positioning accuracy |
±0.02mm |
|
XY Axis Maximum Acceleration |
0.4g |
|
XY Axis Max. speed |
30m/min |
|
Working Table |
Serrate working platform |
|
XY Axis Transmission system |
German helical rack and pinion |
|
Z axis Transmission system |
Taiwan TBI ballscrew |
|
Cooling System |
Industry water chiller |
|
Power Supply Rated Voltage |
3-phase 380V/50Hz or Custom made |
|
Machine Weight |
3000KG |
|
Dimension |
2250*4200*1500mm |
Samples
Each of the small parts have been tested by the quality department
Packing and delivery
Step 1. Pack the machine with plastic sheet for clearing and damp proofing.
Step 2: Put the machine in the plywood case for safety
Step 3: Transport the plywood case into the container.
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
