Product Details:
Payment & Shipping Terms:
|
| Name: | Fiber Laser Cutting Machine | Laser Power: | 2000W |
|---|---|---|---|
| Laser Source: | IPG Fiber Laser | Cutting Thickness: | 16mm Carbon Steel, 8mm Stainless Steel |
| Cutting Speed: | 25m/min | Driving System: | Gantry Gear Rack Double-drive |
| Highlight: | industrial laser cutter,laser cutting equipment |
||

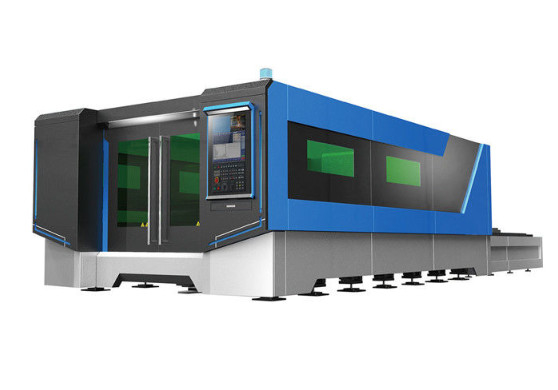

Automobile Industrial Laser Cutting Machine , Fiber Metal Laser Cutting Machine
Product Features
Full protection cover and with exchange cutting table, easy upload the metal sheet. Gantry design,double drive,higher cutting speed and efficient,
Smooth cutting surface,little deformation,pretty leveling appearance. Free maintenance for fiber laser generator,Max life reach to more than 100000 hours. The machine max can cut 16mm carbon steel, 8mm stainless steel.
Application
Fiber laser cutting machine widely applied to cutting all kinds of sheet metal plate,such as stainless steel,mild steel,manganese steel,galvanized steel,alloy steel,rare metal etc.Widely used in electric appliance,high-low-voltage electrical cabinet production,lighting&hardware,advertisement,automobile parts,display equipment and other sheet metal industry.
Technical Parameter
| Item Name | Parameter |
| Model | SL-3015F-2000W |
| Laser power | 2000W |
| Laser wavelength | 1070nm |
| Laser type | IPG fiber laser |
| Max positioning speed | 100m/min |
| X/Y axis positioning accuracy | ±0.05mm/m |
| X/Y axis repositioning accuracy | ±0.03mm |
| Cutting thickness | Less 20mm ( carbon steel ) |
| CNC cutting table size | 3000×1500mm |
| Power supply requirement | 3 phase 380V,50-60Hz,60A |
| Package | Standard export wooden case |
Cutting samples:
Key parts: 2000W IPG fiber laser source, laser life : 100,000 hours, free maintenance.
Machine packing & delivery :
Installation:
After the machine reach the buyer’s site,the engineers from the seller are responsible for machine installation and commissioning by using the special tools under the help of the buyer. Buyer should pay for our engineer visa fee, air tickets, accommodation, meals etc.
Training:
The common protection knowledge of laser safety
The basic principle of laser module and the structure of laser cutting machine
The operation skills of fiber laser cutting machine
Equipment operation and the application notice
Skills of equipment daily maintenance,laser module adjustment and spare parts replacement.
Installation & training time is about 5 to 7 days.
