Product Details:
Payment & Shipping Terms:
|
| Name: | Laser Cutting Machine | Cutting Area: | 1300*900mm |
|---|---|---|---|
| Cutting Speed: | According To Different Material | Cutting Thickness: | According To Different Material |
| CNC Or Not: | Yes | Feature: | Automatic |
| Highlight: | laser cutting equipment,laser cutting device |
||

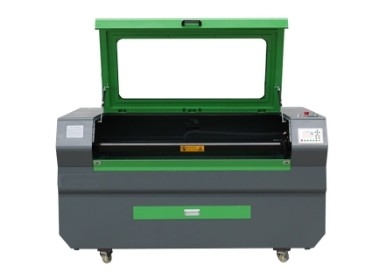

Hot sale Industry laser equipment acrylic laser engraving cutting machine
Applicable materials:
Suitable for two-color panels,plexiglass,glass,bamboo,paper,rubber,marble,ganite, tile and other non-metal materials and
carbon steel,stainless steel.
Applicable industry:
Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.
Main configuration:
Working area: 1300*2500mm
Reci CO2 laser tube 100W (Peak power can reach 120w)
RD control system,USB offline
Taiwan Hiwin guide rails
Leadshine stepper motor and drivers(X1 Y2)
Heavy duty bed frame 4mm thickness
Taiwan TBI ball screw for Z axis transmision
Shanghai Fulong belt transmission for X,Y axis
Japan Omron Limited Switch
Singapore lens and mirrors
Blade table
Water protection switch
Water pump or water chiller CW3000
Air pump ACO-008
2* Dust collector 550W
Standard tool box
Technical data:
| Engraving area | 1300*2500mm |
| Laser power | 100W(120W) |
| Cutting Depth | 0-40 mm |
| Cutting speed | Difference material difference speed |
| Power supply | 220V±10%/10A |
| Positioning speed | 20m/min |
| Operating system | RD control system |
| Operating temperature | 0-45℃ |
| Operating humidity | 5-80%(free of condensed water) |
| Dimensions(mm) | 3500*2050*1500mm |
| Package | |
| Firstly | Packed the laser machine with plastic sheet for clearing and damp proofing. |
| Secondly | Then put the laser machine in the plywood case for safety and clashing. |
| Thirdly | Transport the plywood case into the container. |
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
