Product Details:
Payment & Shipping Terms:
|
| Product Name: | Konica Solvent Printer | Maximum Printing Width: | 3200mm |
|---|---|---|---|
| Apply The Ink: | Solvent Ink | Applied Materials: | Light Boxcloth/coiled/material |
| The Igntion Frequency: | 20KHZ | Feed/collect System: | Automatic |
| High Light: | epson eco ink printer,epson large format printer |
||

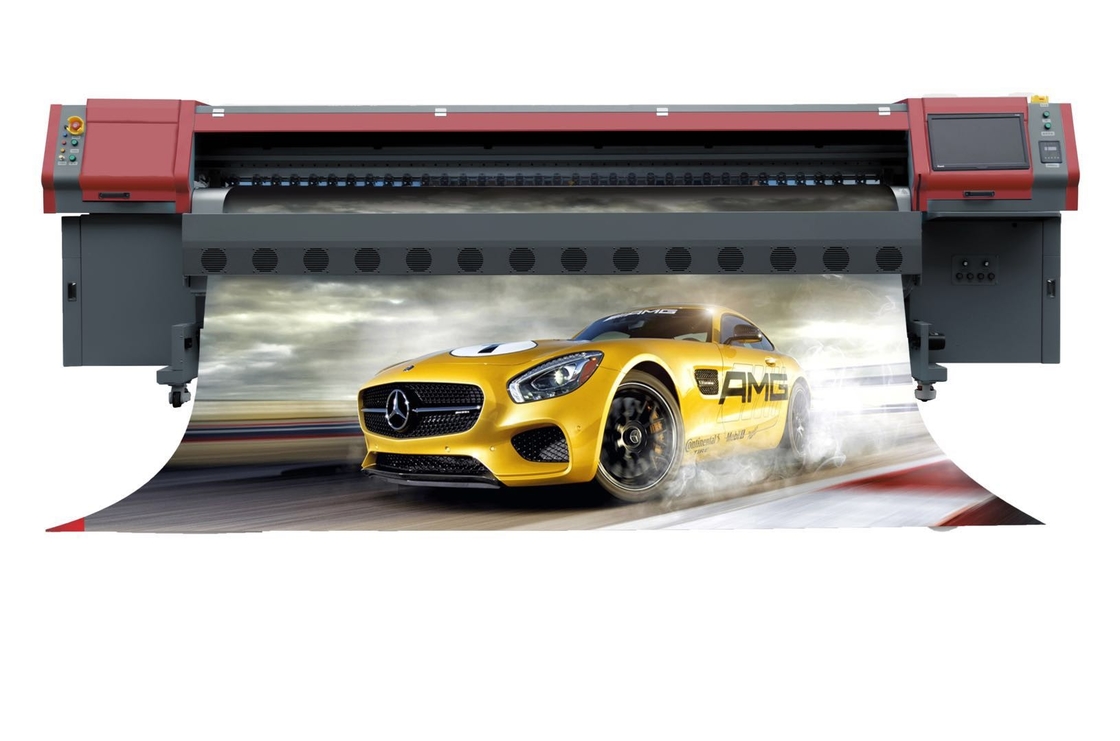

Konica Solvent Printer
Specifications:
| Equipment model | 512i-A |
| Control board | BYHX |
| Carriage motor | Panasonic 400W Carriage motor |
| Drag chain | Germany IHUS Drag chain |
| Carriage belt | Iialy MEGADYNE |
| Linear guide | Japan THK linear guide with mute the slider |
| Printer frame | High quality &strong Printer frame |
| Beam | Aluminum beam(straighlness 0.1mm flatness 0.05mm |
| Carriage | Lift type carriage |
| Head type | KM512i-30pl |
| Head height | 1-10mm |
| Maximum printing width | 3200mm |
| Apply the ink | Solvent ink |
| Applied materials | Light boxcloth/coiled/material |
| The igntion frequency | 20KHZ |
| Printing speed | 2Pass 3Pass 6Pass 8Pass |
| (4H) 140m2 90m2 45m2 35m2 | |
| (8H) 280m2 180m2 90m2 70m2 | |
| Print accuracy | 480x360dpi 480x540dpi 720x1080dpi 720x1440dpi |
| RIP software | MainTop/Photoprint |
| Nozzle moisturizing | Industral nozzle specialdevice |
| Drying system | Intelligent infrared heating &Drying system |
| Feed/collect system | Auto Feeding &collecting system |
| Environmental conditions | Temperature: 16-30℃ Relative Humidity: 40%-60% |
| Power supply/power | AC220/1500W(Print) 3000W(Dry) |
| Product size(mm) | 5000 X 1200 X 1700 mm |
| Product weight | 1100kg |
| Highlight the configuration | ||||||||||
| 1. Japan THK linear guide | ||||||||||
| 2. Panasonic drive for X motor | ||||||||||
| 3. Built-ink for case | ||||||||||
| 4. The new wheel increase bearing capacity | ||||||||||
| 5. Fine processing parts |
Description:
1. With high resolution, could optional 4pcs or 8pcs konica 512i/35pl printhead.
2. Speed up to 90-280m2/h, easy to achieve batch production.
3. Low cost solvent ink, suitable for the traditionla advertising production.
4. Automatic ink supply and the stable transmission design ensure long picture printing smoothly.
