Product Details:
Payment & Shipping Terms:
|
Product Name: | Konica Solvent Printer | Maximum Printing Width: | 3200mm |
---|---|---|---|
Apply The Ink: | Solvent Ink | Applied Materials: | Light Boxcloth/coiled/material |
The Igntion Frequency: | 20KHZ | Drying System: | Intelligent Infrared Heating &Drying System |
High Light: | epson eco ink printer,epson large format printer |

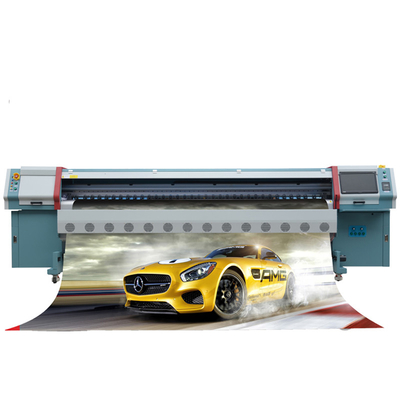

Konica Solvent Printer
Specifications:
Equipment model | 512i-A |
Control board | BYHX |
Carriage motor | Panasonic 400W Carriage motor |
Drag chain | Germany IHUS Drag chain |
Carriage belt | Iialy MEGADYNE |
Linear guide | Japan THK linear guide with mute the slider |
Printer frame | High quality &strong Printer frame |
Beam | Aluminum beam(straighlness 0.1mm flatness 0.05mm |
Carriage | Lift type carriage |
Head type | KM512i-30pl |
Head height | 1-10mm |
Maximum printing width | 3200mm |
Apply the ink | Solvent ink |
Applied materials | Light boxcloth/coiled/material |
The igntion frequency | 20KHZ |
Printing speed | 2Pass 3Pass 6Pass 8Pass |
(4H) 140m2 90m2 45m2 35m2 | |
(8H) 280m2 180m2 90m2 70m2 | |
Print accuracy | 480x360dpi 480x540dpi 720x1080dpi 720x1440dpi |
RIP software | MainTop/Photoprint |
Nozzle moisturizing | Industral nozzle specialdevice |
Drying system | Intelligent infrared heating &Drying system |
Feed/collect system | Auto Feeding &collecting system |
Environmental conditions | Temperature: 16-30℃ Relative Humidity: 40%-60% |
Power supply/power | AC220/1500W(Print) 3000W(Dry) |
Product size(mm) | 5000 X 1200 X 1700 mm |
Product weight | 1100kg |
Highlight the configuration | ||||||||||
1. Japan THK linear guide | ||||||||||
2. Panasonic drive for X motor | ||||||||||
3. Built-ink for case | ||||||||||
4. The new wheel increase bearing capacity | ||||||||||
5. Fine processing parts |
