Product Details:
Payment & Shipping Terms:
|
| Color & Page: | Multicolor | Usage: | Advertising Production |
|---|---|---|---|
| Plate Type: | Flatbed Printer | Condition: | New |
| Weight: | 1350KG | Automatic Grade: | Automatic |
| Voltage: | 220V/230V, 50Hz/60Hz | Warranty: | 1 Years |
| Applicable Industries: | Printing Shops, Advertising Company | ||
| High Light: | flatbed digital printing machine,digital flatbed led uv printer |
||

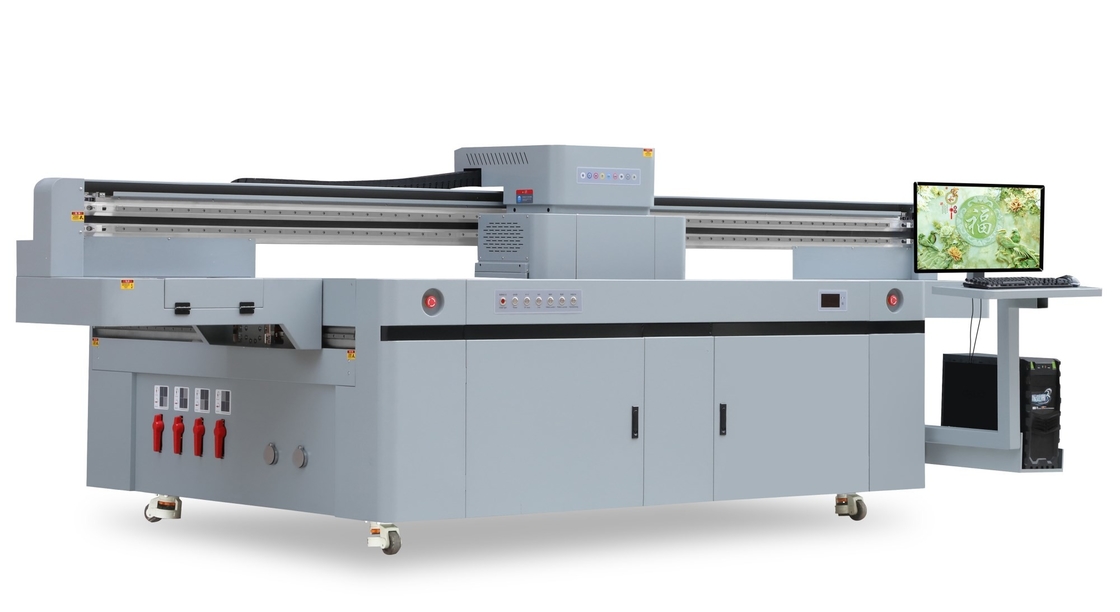

Professional Digital UV Flatbed Printing Machine Printhead Height Adjustable
Quick Details:
Print Dimension: 2500mm x 1300mm
Ink Type: UV Ink
Product name: UV Flatbed Printer PJ-2513
Printing Dimension: 2500mm x 1300mm
Printhead Height: Adjustable 0-80mm
Print Speed: 42 sqm/h(With 3 Print Heads)
Ink Color: C M Y K Lc Lm W Vanish
RIP Software: Photoprint
Resolution: 1440dpi
Curving Mode: LED-UV Light/Power Consumption 400W, Fast Dry
Image Format: JPG, TIF, PDF, PNG, EPS and etc
Our Service:
(1) Please contact with us in 5days after you receive the goods if you find any quality problems. Return or exchange is acceptable for the problems products.
(2) Please confirm that you have bought the right products when make purchasing. If you make mistakes when purchasing, then we will charge you 15% return poundage (Special products are non-refund or exchange).
(3) If the undeserved damage is caused due to personal reasons, we don't accept return or exchange. Any unreasonable return is not acceptable after receive the goods.
(4) Please give us “praise” after receive the goods, any problem contact us in the first time. We’ll try our best to help you. The “assessment” or “bad review” will not do any help for solvent the problem.
Quality Assurance
To ensure first-class quality, maintain a reputation of the business philosophy, adhere to the "customer first" principle to provide our clients with quality services.
Product Application
| Model NO. | FB-2513R | FB-2030R |
| Printhead | Gen5/7PL(3/4 heads) | |
| Printhead Height | Adjustable 0-80mm | |
| Media Width | 2500 x 1300 mm | |
| Resolution(dpi) | 300x360dpi 360x720dpi 720x720dpi 720x1080dpi 720x1440dpi 1080x1440dpi | |
| Ink Color | C M Y K Lc Lm W Vanish(8 Color) | |
| Speed (3 pass) | 42 sqm/h(With 3 Print Heads) | |
| Speed (4 pass) | 32 sqm/h(With 3 Print Heads) | |
| Speed (6 pass) | 26 sqm/h(With 3 Print Heads) | |
| Ink Type | UV/ECO Ink | |
| Image Format | JPG, TIF, PDF, PNG, EPS and etc | |
| RIP Software | Main top/Photo PRINT/Wasstch Intertional Standard ICC Configuration | |
| Curving Mode | LED-UV Light/Power Consumption 400W, Fast Dry | |
| Environment | Temperature: 20-28°C, Humidity: 40-60% | |
| Interface | USB2.0 | |
| Power Input | AC 220V, 50/60Hz | |
| Power Consumption | Printing Mode ≈ 3500W, Sleep Mode ≈ 600W | |
| Machine Size | L4200 W2100 H1400 (mm) | L3500 W3900 H1400 (mm) |
| Machine Weight | 900 KG | 1350 KG |
After-sales Service Provided:
Online support, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
