Product Details:
Payment & Shipping Terms:
|
| Color & Page: | Multicolor | Usage: | Advertising Production |
|---|---|---|---|
| Plate Type: | Flatbed Printer | Condition: | New |
| Weight: | 1350KG | Automatic Grade: | Automatic |
| Voltage: | 220V/230V, 50Hz/60Hz | Warranty: | 1 Years |
| Applicable Industries: | Printing Shops, Advertising Company | ||
| High Light: | uv flatbed printing machine,flatbed digital printing machine |
||

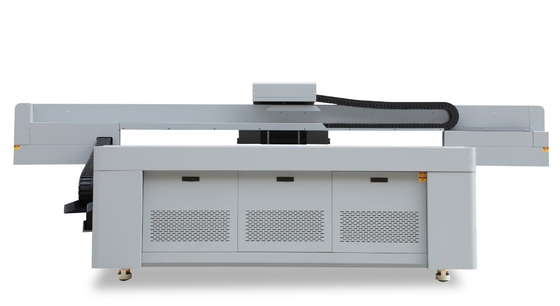

Advertising Production UV Uv Flatbed Printing Machine With Dual Liner Guide Rail
Quick Details:
Print Dimension: 2500mm x 1300mm
Ink Type: UV Ink
Product name: UV Flatbed Printer PJ-2513
Printing Dimension: 2500mm x 1300mm
Printhead Height: Adjustable 0-80mm
Print Speed: 42 sqm/h(With 3 Print Heads)
Ink Color: C M Y K Lc Lm W Vanish
RIP Software: Photoprint
Resolution: 1440dpi
Curving Mode: LED-UV Light/Power Consumption 400W, Fast Dry
Image Format: JPG, TIF, PDF, PNG, EPS and etc
Product Description
| Model NO. | FB-2513R | FB-2030R |
| Printhead | Gen5/7PL(3/4 heads) | |
| Printhead Height | Adjustable 0-80mm | |
| Media Width | 2500 x 1300 mm | |
| Resolution(dpi) | 300x360dpi 360x720dpi 720x720dpi 720x1080dpi 720x1440dpi 1080x1440dpi | |
| Ink Color | C M Y K Lc Lm W Vanish(8 Color) | |
| Speed (3 pass) | 42 sqm/h(With 3 Print Heads) | |
| Speed (4 pass) | 32 sqm/h(With 3 Print Heads) | |
| Speed (6 pass) | 26 sqm/h(With 3 Print Heads) | |
| Ink Type | UV/ECO Ink | |
| Image Format | JPG, TIF, PDF, PNG, EPS and etc | |
| RIP Software | Main top/Photo PRINT/Wasstch Intertional Standard ICC Configuration | |
| Curving Mode | LED-UV Light/Power Consumption 400W, Fast Dry | |
| Environment | Temperature: 20-28°C, Humidity: 40-60% | |
| Interface | USB2.0 | |
| Power Input | AC 220V, 50/60Hz | |
| Power Consumption | Printing Mode ≈ 3500W, Sleep Mode ≈ 600W | |
| Machine Size | L4200 W2100 H1400 (mm) | L3500 W3900 H1400 (mm) |
| Machine Weight | 900 KG | 1350 KG |
After-sales Service Provided:
Online support, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
