Product Details:
Payment & Shipping Terms:
|
| Name: | Laser Cutting Machine | Laser Power: | 500W |
|---|---|---|---|
| Cutting Area: | 3000*1500mm | Cutting Thickness: | 0.2-6mm |
| CNC Or Not: | Yes | Application: | Sheet Metal Cutting |
| High Light: | laser cutting equipment,laser cutting device |
||

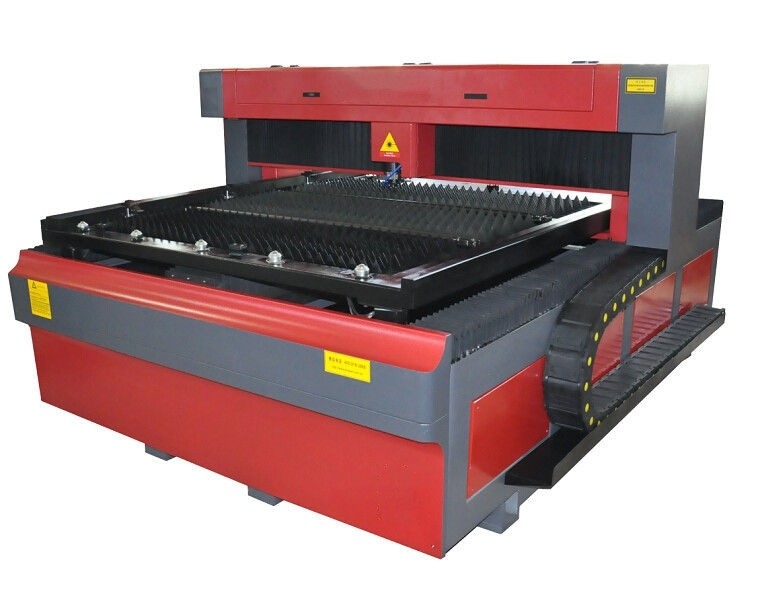

CE Approved Laser Cutting Machine / Yag Laser Cutting Metal Machine
Technical Parameter
| Model | HECY3015-500W | HECY3015-750W |
| Medium of Laser | Nd: YAG 500W |
| Cutting Area(mm)(length×width) | 4000mm×1500mm |
| Max Cutting Speed(m/min) | 6m/min | 8m/min |
| Cooling Way | water cooling |
| Cutting condition | Compressed air blowing |
| Pulse repeted Frequence | 0-300Hz |
| Min line Width | 0.12mm |
| Cutting Depth | 0.2mm---6mm (500W)/0.2mm-8mm(750W) |
| Laser Wavelength | 1064nm |
| Working Power | 380V/50Hz/50A |
| Continuous Working Time | 24 hours |
| Weight | About 3500kg |
| Dimention(mm) (Length×Width×Height) | 4270mm×2480mm×1400mm |
| Application | steel, aluminium,copper,sliver cutting |
Product Description
This product adopts the most sophisticated Germany IPG laser and double driver, advance laser technology, computer control technology and high-performance CNC laser power system to process all kinds of metal sheet at high speed, high accurate, high efficiently cutting.
The working table is 3000mm × 1500mm, with small kerf and small thermal effects, especially good for high quality sheet metal processing.
Advantages
1. Adopt advanced Russian solid laser core technology, good optical model, stable performance.
2. High efficiency of photoelectric conversion, which is twice that of demestic laser source.
3. Little heat of laser source, only need 5P water-cooling machine, saving electricity.
4. Gantry flying light path design, light operation, which can save about 40% electricity more than laser lines.
5. Achieve a perfect cutting effect by only blowing compressed air during processing, which can largely reduce costs of auxiliary gas such as Oxygen,Nitrogen about tens thousands RMB.
6. Equiped with automatic fuel loading system, which make the machine tool running more stable.
| Applicable Materials | |
| 1. Stainless Steel 2. Carbon Steel 3. Alloy Steel 4. Spring Steel 5. Iron |
6. Aluminum 7. Copper 8. Silver 9. Titanium 10. Other material please contact us. |
| Applicable Industries | |
| 1. Sheet metal fabrication 2. Electrical cabinet 3. Elevator 4. Automotive parts 5. Aviation & aerospace 6. Lighting lamps 7. Metal carfts & decoration |
8. Hardware tools 9. Advertising 10. Furnitures 11. Kitchenware equipment 12. Fitness equipment 13. Medical equipment 14. Agricultural and forestry machinery |
FAQ
Q1. Trade company or manufacturer?
A: We are manufacturer, welcome to visit our factory!
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating video ,also our aftermarket technician can help you via MSN ,Skype teamviewer etc.
Q3. What should I do when the machine is in trouble?
A: Make sure all the wires be connecting well ,and keep your lens and mirrors clean(only for Yag laser cutting machine) ,then check your laser tube and share details with us.
Q4: How long does it take to learn how to operate a laser cutting machine?
A: If you are able to use some basic graphic design software, it will only take a few hours, some simple tests on different processing materials are required to learn how to adjust the speed and laser power.
Q5: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser won’t shoot the skin and eyes directly.
In order to provide a better offer for you, please let me know your requirements as below:
1) What's the materials you want to cut ?
2) The thickness of each cutting materials? max/usual thickness.
3) What's the size of metal you want to cut ?
4) What is the final products ?
5) Are you end user or machine distributor?
