Product Details:
Payment & Shipping Terms:
|
| Name: | Laser Cutting Machine | Laser Type: | Fiber Laser |
|---|---|---|---|
| Cutting Area: | 1500*3000mm | Cutting Speed: | 0-40000mm/min |
| Cutting Thickness: | 0-30mm | CNC Or Not: | Yes |
| High Light: | industrial laser cutter,laser cutting device |
||

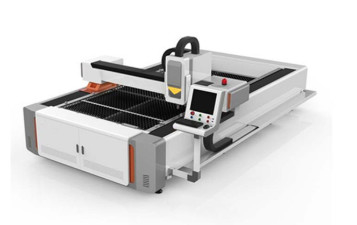

Industry Laser Equipment 1000w Cnc Fiber Laser Cutting Machine For Steel Metal Sheet
|
SPECIFICATIONS FOR DRK1530 FIBER LASER CUTTING MACHINE |
|||
|
Model |
DRK-1530F metal laser cutting machine |
||
|
Cutting Tube maximum diameter |
200mm |
||
|
Rotary Attachment |
For both sheet and tube cutting |
||
|
Control System |
Cypcut |
||
|
Laser Power |
Domestic 500W 750W 1KW 2KW Raycus |
||
|
Position Type |
red dot |
||
|
Working Area |
1500*3000mm |
||
|
Power Consumption |
≤12KW |
||
|
Laser Wave Length |
1064nm |
||
|
Working Voltage |
380V/50Hz |
||
|
Working Table |
Sawtooth |
||
|
Auxiliary Gas |
oxygen,nitrogen,air |
||
|
Maximum Idle Running Speed |
1400mm/s |
||
|
Working life of fiber module |
More than 100000 hours |
||
|
Fiber laser cutting head |
Worthing Raytools |
||
|
Liner guider system |
PMI made in Taiwan , (Option THK made in Japan) |
||
|
Transmit system |
Dual Rack & Pinion type |
||
|
Warranty time |
Whole machine for 24 mouths |
||
|
Delivery time |
15 days |
||
|
Gross weight |
4000kg |
||
|
Driver system |
Janpan Yaskawa servo motor |
||
|
Working life of fiber module |
More than 100000 hours |
||
Features
1. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;
2. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;
3. High speed and efficiency, the speed of cutting metal sheets close to tens of meters;
4. The laser maintenance free;
5. The cutting edge looks perfect and the appearance is smooth and beautiful;
6. Imported the transmission mechanism and servo motor, and high cutting accuracy;
7. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.
Application
Application Industry: Manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware,Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc
Available Materials:Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Cutting speed
|
Material |
thickness (mm) |
Speed (meter/min) |
Pressure (mpa) |
Focus |
|
SS 201 |
1 |
9 |
0.8 |
-4 |
|
SS 201 |
2.2 |
2 |
1.2 |
-4 |
|
SS 304 |
1.3 |
7 |
0.9 |
-4 |
|
SS 304 |
1.8 |
3 |
1 |
-4 |
|
Carbon Steel |
1.1 |
9(10) |
0.8 |
-1 |
|
Carbon Steel |
2.4 |
2.2 |
0.4 |
-3 |
|
Carbon Steel |
2.8 |
1.5 |
0.4 |
-3.5 |
|
Carbon Steel |
4 |
1.5(1.2) |
0.4 |
-4 |
Configuration
3000*1500mm working area;
Worthing laser cutting head;
X,Y axis Japan YASKAWA servo motor;
Z axis Japan Panasonic servo motor;
Taiwan HIWIN guide rail;
Taiwan APEX gear rack;
France MOTOREDUCER reducer;
Taiwan TBI ball screw;
Japan SMC /Taiwan AirTac pneumatic components;
France Schneider electrical components;
Tongfei Teyu water chiller;
Cypcut control system;
Gross weight 3500kg;
